HY100-02 Inside Earloop Face Mask Welding Machine

HY100-02 Inside Earloop Face Mask Welding Machine

Description

Description

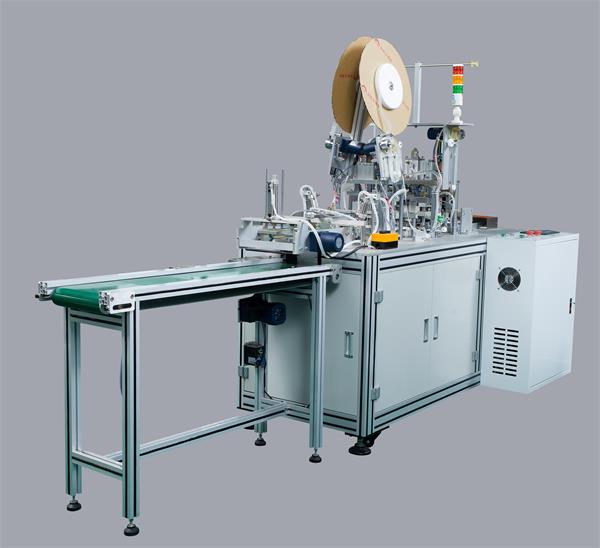

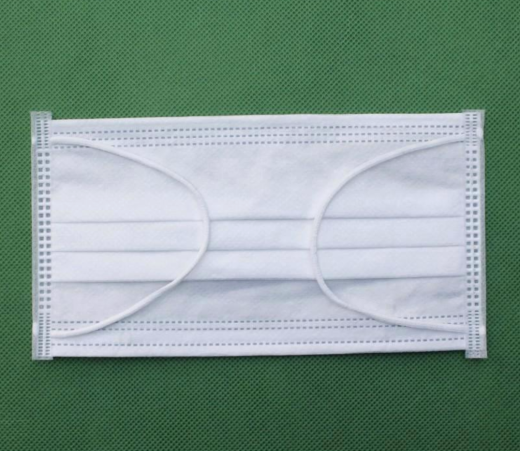

This inside earloop face mask welding machine puts 3-7mm elastic belt on both sides of the face mask blank by ultrasonic welding. Only 1 operator is needed to put the face mask blank on the moving belt one by one and the remaining processes will be done by the machine automatically. Our inside earloop face mask making machine has changed the rotating way of earloop on the basis of traditional mask machine, realizing more stable performance and higher output.


Advantages

1. This inside earloop face mask welding machine is designed with sensors in every part from fabric feeding to finished product discharging. It will start automatic alarm system and stop running once failure or lack of material occurs. The specific problem can be shown on the touch screen, with no need of finding the reason of breakdown, significantly raising work efficiency.
2. We have professional research and development team focusing on improving efficiency and optimizing automation.

3. We have established separate electronic department and CNC department. The electronic department is in charge of development and assembly of ultrasonic and circuits, while the CNC department is equipped with lathes and milling machines to control the quality of products.


Features
1. The inside earloop face mask making machine is small in size, and it uses aluminum alloy structure that is attractive in appearance, and solid and rust-proof in performance.
2. 1-4 levels of mask blanks can be produced according to customer’s specific requirements.
3. Size of the face mask blank can be adjusted.

4. This inside earloop face mask welding machine is controlled by PLC with stable performance and low failure rate.


Note
1. This inside earloop face mask making machine is suitable for manufacturing and processing non-woven disposable products.
2. Please confirm the machine size before purchasing as this inside earloop face mask welding machine requires 1-1.5 meter(s) of safe operation space beside it. Keep the operation environment dry and ventilated.
3. Please arrange engineers to our company for machine knowledge and operation training. Technicians not trained and authorized shall not operate the machine.
4. Our inside earloop face mask making machine enjoys 10 years’ service life if properly maintained.

Technical parameter

Machine size

1915 × 855 × 1780mm

Output

50-70pcs/min

Special requirements

For 145-180cm mask

Voltage

220V

Pressure

6kg/cm2

Power

2.3kW
