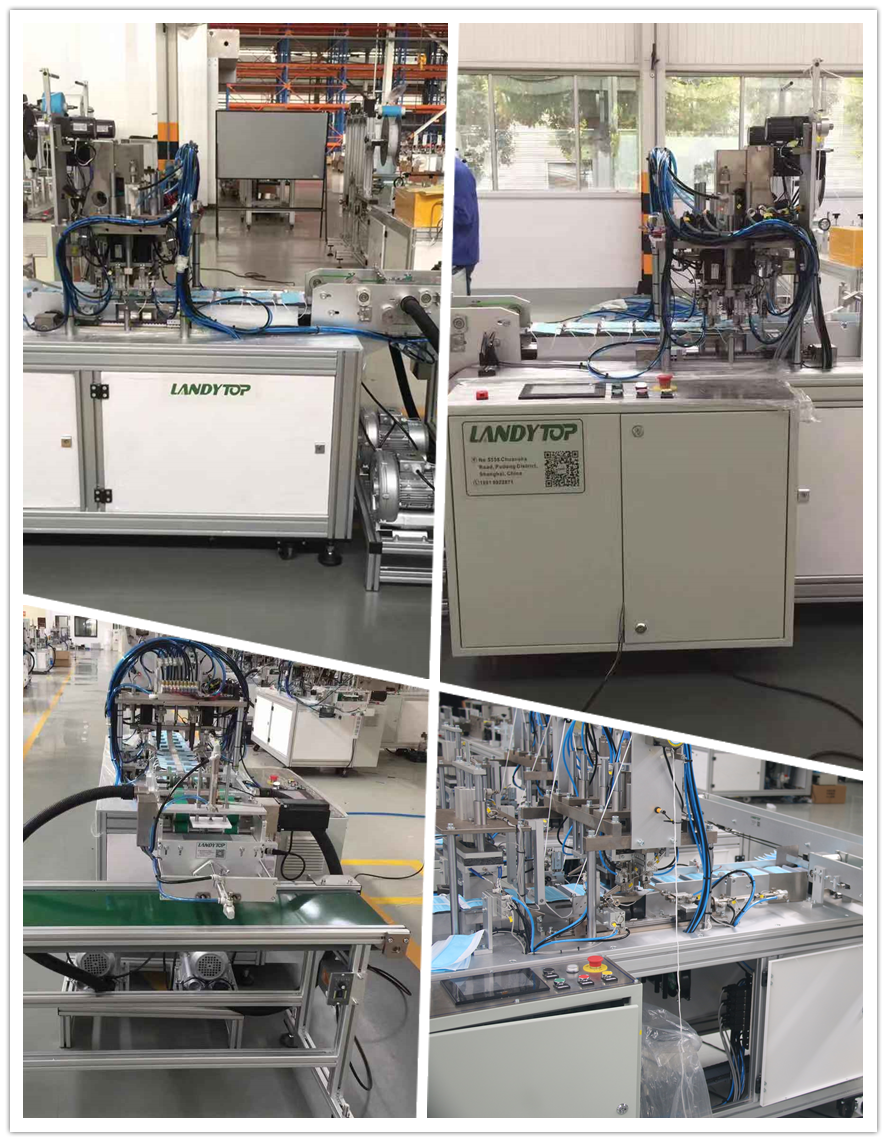

Face Mask Welding Machine

This outside ear loop welding machine automatically produces ear loop face masks by welding the elastic band into the outer side of the mask. Only 1 operator is required to put the material on the conveyor, and then this ear loop mask welding machine will finish production automatically.
Face Mask Welding Machine
No.
Items
Descriptions
1
Basic specification
Applicable for 2 layer or 3 layer mask ear hook mask welding machine
2
Machine weight
420kgs
3
Electrical specification
220V±5%, 50HZ, single phase, 5kw
4
Air pressure
0.5-0.7MPA,150L/min (Required Air Compressor 7.5KW)
5
Required environment
humidity 5% -35% RH, temperature 10-35 degrees, no dust, no flammable and corroded air.
6
Size
17.5cmx9.5cm (can be customized)
7
Production speed (1 main unit of face mask machine)
110pcs/min
8

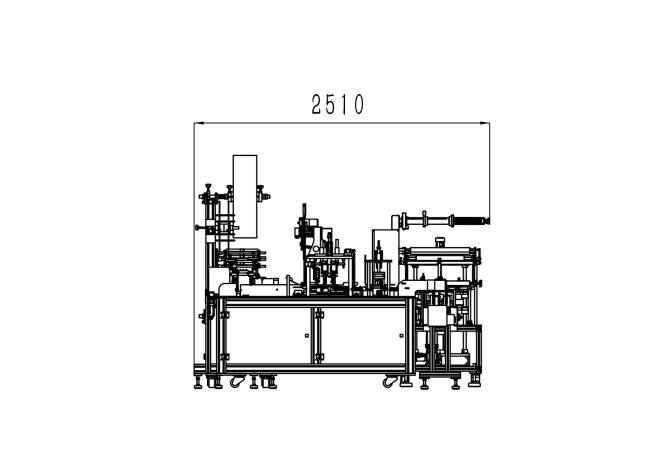

Machine size (please refer to the physical size)
1512mm(L)X1025mm(W)X1980mm(H)
