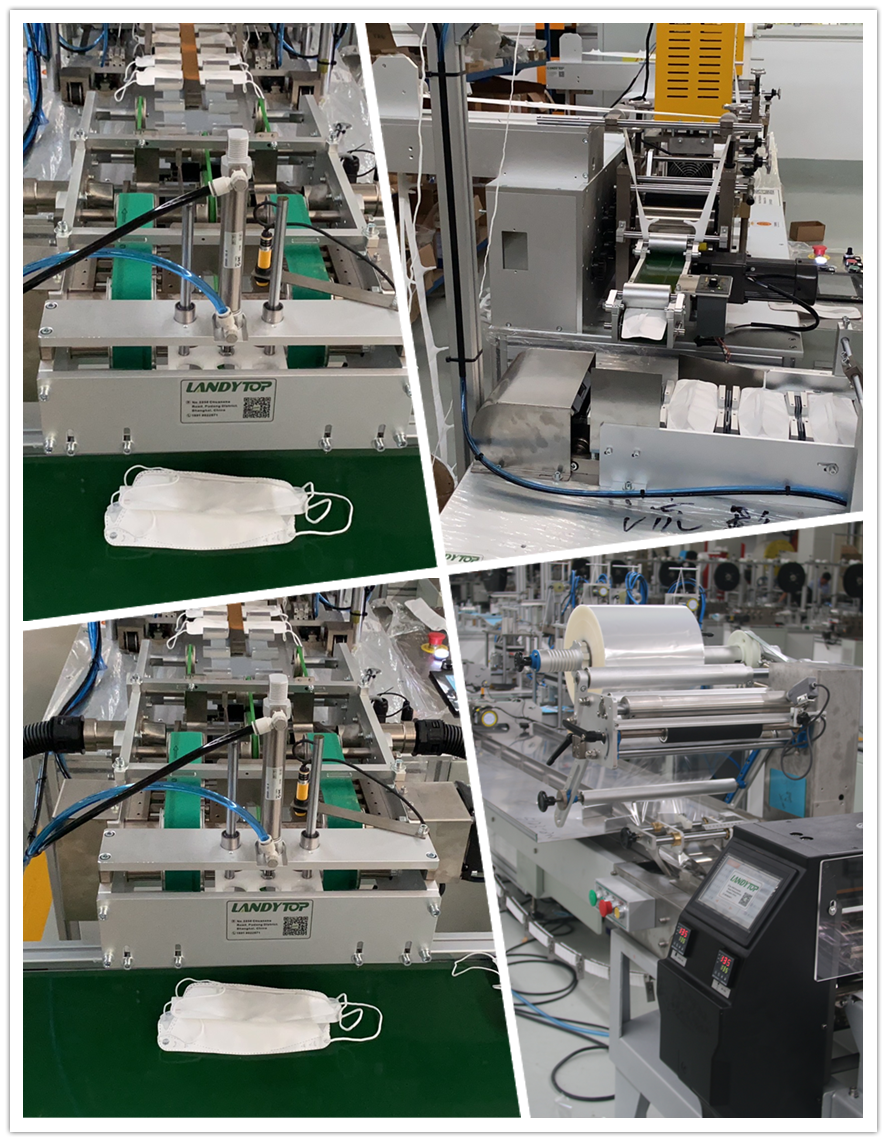

Fish Mask Machine with Packing Machine

Fish Mask Making Machine, used for fish masks, from feeding, nasal line implantation, welding/folding/cutting of blank masks, earring knitting to the completion of the complete mask. Then the finished mask is passed through the packaging machine to complete the automatic packaging. It can ensure the quality of the mask, greatly reduce the chance of people contacting the materials, and save labor costs. The production capacity reaches 40-50pcs/min.

Fish Mask Making Machine with Packing Machine

No.

Items

Descriptions

1

Basic specification
Applicable for 4 layer mask with ear hook mask welding machine

2

Machine weight
2500kgs

3

Electrical specification
220V±5%, 50HZ, single phase, 20KHZ

4

Air pressure
3-6KG/CM2

5

Required environment
humidity 5% -35% RH, temperature 10-35 degrees, no dust, no flammable and corroded air.

6

Production speed (1 main unit of face mask machine)
40-50pcs/min

7

Machine size (please refer to the physical size)
7500mm(L)X4000mm(W)X2200mm(H)
Packing Machine
Film & Thickness
OPP / 0.012-0.07mm
Film Width: Max 320mm
Film Roll Diameter: 320mm
Bag Size
W: 20-100mm H: 80-260mm
Packing Speed
10-80 bag/min
Electric Spec.
220V/50Hz
Power Consumption
2.4KW
Machine Dimension
4000X930X1370mm
Packing Dimension
Two Packages:
Main Body: 1560*850*1520mm=2.016CBM
Conveyor: 2670*550*360mm=0.534CBM
Machine Weight
465kgs
G.W.
528kgs
Testing Film
Include one small roll
