Full Automatic Foldable N95/FFP2 Mask Production Line with Valve

Full Automatic Foldable N95/FFP2 Mask Production Line with Valve is an automatic machine for making folded mask with exhalation valve. Only 1 operator is required to operate this automatic folded mask making machine, and processes from material feeding to exhalation valve welding can be finished automatically.

Full Automatic Foldable N95/FFP2 Mask Production Line with Valve

No.
Items
Descriptions

1
Basic specification
Applicable for N95 mask with machine
ear hook face mask welding

2
Machine weight
3000kgs

3
Electrical specification
220V±5%, 50HZ, single phase, 13kw

4
Air pressure
6Kg/cm2, 750L/Min (required air compressor7.5kw)

5
Required environment
humidity 5% -35% HR, temperature 10-35 degrees, no dust, no flammable and corroded air

6

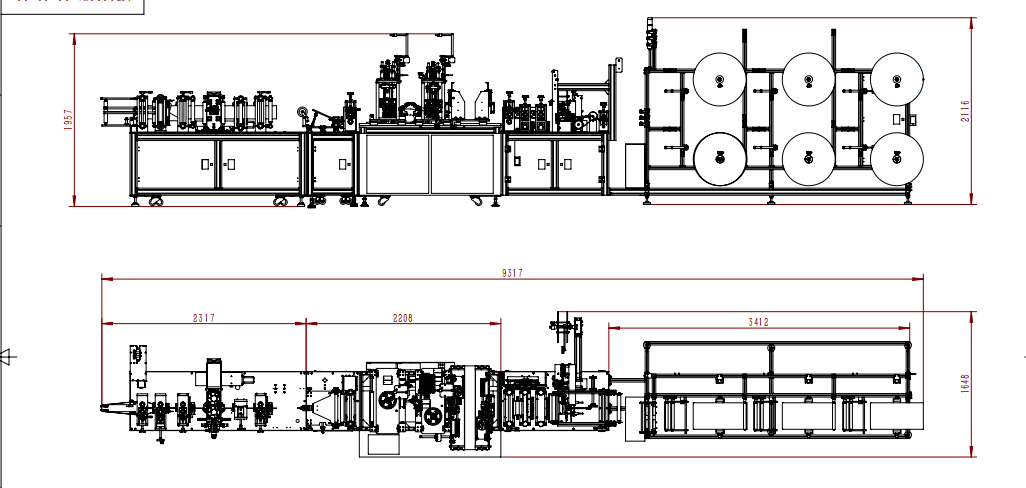

Machine size
(please refer to the physical size)
8286 × 1500 × 1650mm

7
Capacity
65+ per minute

8
System power consumption
ultrasonic
1500W*4 sets

9
Ultrasonic system frequency
20KHz

ENQUIRY

Back to list E-mail: sales05@landytop.com|Tel: +86-21-60346873
